About 3D Secure 2.0

3-D Secure 2.0 is an EMVCo payment authentication protocol designed to reduce card not present fraud by making a risk assessment based on transaction and device data, while also supporting further risk minimization measures, such as a challenge to the cardholder. In some cases, a liability shift takes effect for certain card-not-present fraud-related chargebacks enabling the merchant to provide goods and services with confidence.

The Moneris Gateway can enable transactions using the 3-D Secure protocol via Moneris 3DS Server and Access Control Server (ACS).

Moneris Gateway supports the following 3-D Secure implementations:

  • Visa Secure
  • Mastercard Identity Check
  • American Express SafeKey (please not American Express only supports authentication requests for merchants who have an AMEX OFI merchant account)

3D Secure Implementations

Visa Secure, Mastercard Identity Check and American Express SafeKey are programs based on the 3-D Secure Protocol to improve the security of online transactions.

These programs involve authentication of the cardholder during an online e-commerce transaction.

Authentication is based on the issuer’s selected method of authentication.

The following are examples of authentication methods:

  • Risk-based authentication
  • Biometric authentication
  • One-Time Passwords ie. SMS

Some benefits of these programs are reduced risk of fraudulent transactions and protection against chargebacks for certain fraudulent transactions.

Out of Scope/Not Supported

  • In-app
  • 3RI

Version Compatibility

All development to the Moneris API must be able to support the addition of new fields in the response and new error conditions in the response. Otherwise any changes that affect backwards compatibility will be communicated by Moneris Solutions with an appropriate period of notice. When developing to the solution it is recommended to validate for success state of the request and then handle errors states separately and ensure there is a final catch for any unexpected/undocumented errors that are returned.

Upgrading from 3D Secure 1.0 to 3D Secure 2.0

The 3DS 2.0 API is different from the 3DS 1.0 API therefore developers will have to complete all steps listed below:

  1. Activating 3D Secure Functionality
  2. Transaction flow for 3DS 2.0
  3. Implementing Card Lookup Request
  4. Implementing Authentication Request
  5. Handling the Challenge Flow
  6. Performing the Authorization

Activating 3D Secure Functionality

To activate Visa Secure, Mastercard Identity Check and/or American Express SafeKey transaction functionality, call Moneris Sales Support at 1-855-465-4980 to have Moneris enroll you in the program(s) and enable the functionality on your account.

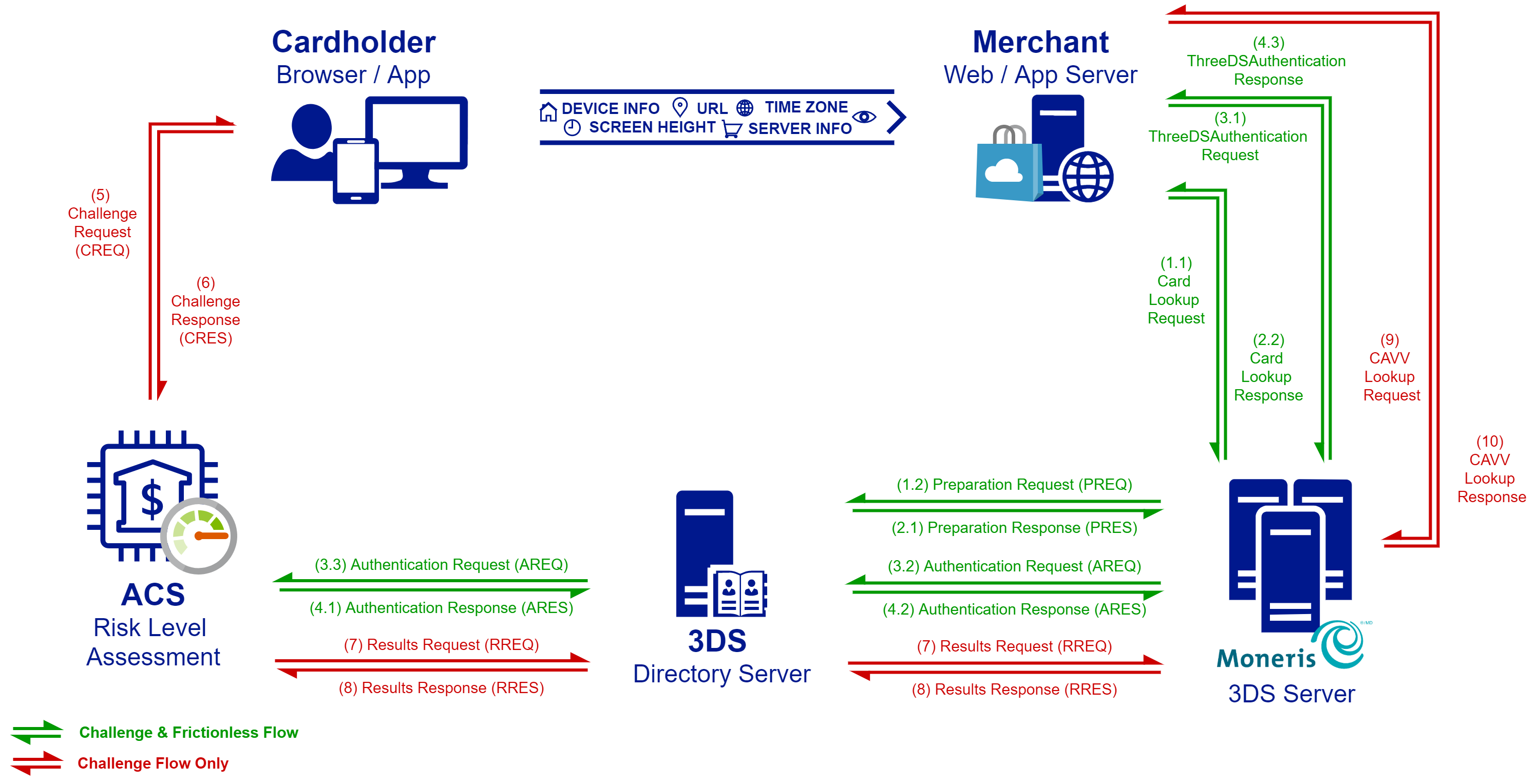

Transaction flow for 3DS 2.0

The Java 3DS 2.0 API is called when the customer wishes to checkout. An optional card lookup request can be performed to initiate cardholder browser fingerprinting. Once the fingerprint is complete, or as a first step if not performing a fingerprint, the transactional information can then be transmitted to the 3DS 2.0 service so a risk assessment may be initiated.

The flow can then proceed in one of two ways. The two different flows are referred to as “frictionless” and “challenge”.

The “frictionless” flow is transparent to a cardholder. If the issuing financial institution has enough information to make a risk assessment and assume liability, this will manifest itself as with an authentication attempt or success with an accompanying cavv value. No cardholder challenge is presented.

In the “challenge” flow the issuing financial institution may wish to take a further step and issue a challenge to the cardholder. In this case the cardholder’s browser gets re-directed to the issuer’s 3DS platform for authentication. Once this challenge is complete, the cardholder browser is again re-directed back to the merchant’s site. The merchant’s server then issues a server-to-server request in order to obtain the CAVV value from Moneris.

Implementing Card Look Up Request

The CardLookup request verifies the applicability of 3DS 2.0 on the card and returns the 3DS Method URL. That is used for device fingerprinting. This request is optional, it may increase the chance of a frictionless flow.

The threeDSMethodURL & threeDSMethodData are returned to the merchant server on the CardLookup response. The threeDSMethodData can be transmitted to the threeDSMethodURL via a browser post in order to supplement the authentication request with device data pertaining to the cardholder’s browser.

The threeDSMethodData must be sent via HTTP POST to the threeDSMethodURL in a hidden iFrame.

In your implementation, use the following URLs as Host, depending on the development stage:

Testing: esqa.moneris.com

Production: www3.moneris.com

Canada Code Sample

package Canada;

import JavaAPI.*;

public class TestCanadaMpiCardLookup
{
	public static void main(String[] args)
	{
		String store_id = "moneris";
		String api_token = "hurgle";
		java.util.Date createDate  = new  java.util.Date();
		String order_id = "Test"+createDate.getTime();
		String pan = "4740611374762707";

		String processing_country_code = "CA";

		MpiCardLookup mpiCardLookup = new MpiCardLookup();
		mpiCardLookup.setOrderId(order_id);
		mpiCardLookup.setPan(pan);
		mpiCardLookup.setNotificationUrl("https://yournotificationurl.com");  //(Website URL that will receive 3DS Method Completion response from ACS)

		//************************OPTIONAL VARIABLES***************************

		HttpsPostRequest mpgReq = new HttpsPostRequest();
		mpgReq.setProcCountryCode(processing_country_code);
		mpgReq.setTestMode(true); //false or comment out this line for production transactions
		mpgReq.setStoreId(store_id);
		mpgReq.setApiToken(api_token);
		mpgReq.setTransaction(mpiCardLookup);
		mpgReq.send();

		/**********************   REQUEST  ************************/

		try
		{
			Receipt receipt = mpgReq.getReceipt();

			System.out.println("ResponseCode = " + receipt.getResponseCode());
			System.out.println("ReceiptId = " + receipt.getReceiptId());
			System.out.println("Message = " + receipt.getMessage());
			System.out.println("MessageType = " + receipt.getMpiMessageType());
			System.out.println("ThreeDSMethodURL = " + receipt.getMpiThreeDSMethodURL());
			System.out.println("ThreeDSMethodData = " + receipt.getMpiThreeDSMethodData());
			System.out.println("ThreeDSServerTransId = " + receipt.getMpiThreeDSServerTransId());
		}
		catch (Exception e)
		{
			e.printStackTrace();
		}
	}
} // end TestResMpiTxn


CardLookup Request

MpiCardLookup transaction object definition

MpiCardLookup mpiCardLookup = new MpiCardLookup();

HttpsPostRequest object for MpiCardLookup transaction

HttpsPostRequest mpgReq = new HttpsPostRequest();

mpgReq.setTransaction(mpiCardLookup);

Core connection object fields (all API transactions)

Variable Name Type | Limits Description
Store Id String
N/A
Unique identifier provided by Moneris upon merchant account setup
API Token String
N/A
Unique alphanumeric string assigned by Moneris upon merchant account activation

Request fields for CardLookup request – Required

Element Type | Limit Description Set Method
Order Id String
50-character alphanumeric
Note: some special characters are not allowed < > $ % = ? ^ { } [ ] \
The order number is a unique identifier appended to every financial transaction mpiCardLookup.
setOrderId(ORDERID_VALUE);
Pan String
20-character numeric
Most credit card numbers today are 16 digits, but some 13-digit numbers are still accepted by some issuers. This field has been intentionally expanded to 20 digits in consideration for future expansion and potential support of private label card ranges. mpiCardLookup.
setPan(CC_VALUE);
Data Key String
25-character alphanumeric
The data key is the token that points to a previously stored profile. Profile identifier that all future financial Vault transactions (that is, they occur after the profile was registered by a ResAddCC or ResTokenizeCC transaction) will use to associate with the saved information. The data key is generated by Moneris, and is returned to the merchant (via the Receipt object) when the profile is first registered. mpiCardLookup.
setDataKey(DATAKEY_VALUE);
Notification URL String
256-character alphanumeric
Website URL that will receive 3DS Method Completion response from ACS mpiCardLookup.
setNotificationUrl("https://YOURNOTIFICATIONURL.COM");

Note: Either a pan or a data_key must be passed in the request

CardLook up Receipt Request

Receipt object definition

Receipt receipt = mpgReq.getReceipt();

Element Description Get Method
Receipt Id Echo of the orderID from the request receipt.getReceiptId()
Message Response message. receipt.getMessage()
Message Type Denotes the request message
EMV nomenclature “ARES”
receipt.getMpiMessageType()
ThreeDSMethodURL Device fingerprinting end point receipt.getMpiThreeDSMethodURL()
ThreeDSMethodData Data that must be posted to 3DS Method URL receipt.getMpiThreeDSMethodData()
ThreeDSServerTransId 3DS unique transaction identifier receipt.getMpiThreeDSServerTransId()

Implementing MPI 3DS Authentication Request

The MPI 3DS authentication request is used to start the validation process of the card. The result of this request determines whether 3DS2.0 is supported by the card and what type of authentication is required. It is recommended that you send as many variables as possible in the 3DS Authentication Request to increase the chance of a frictionless authentication.

In your implementation, use the following URLs as Host, depending on the development stage:

Testing: esqa.moneris.com

Production: www3.moneris.com

Canada Code Sample

package Canada;

import JavaAPI.*;

public class TestCanadaMpiThreeDSAuthentication
{
	public static void main(String[] args)
	{
		String store_id = "moneris";
		String api_token = "hurgle";

		String processing_country_code = "CA";

		MpiThreeDSAuthentication mpiThreeDSAuthentication = new MpiThreeDSAuthentication();
        mpiThreeDSAuthentication.setOrderId("Test15978735193");	//must be the same one that was used in MpiCardLookup call
        mpiThreeDSAuthentication.setCardholderName("Moneris Test");
        mpiThreeDSAuthentication.setPan("4740611374762707");
        mpiThreeDSAuthentication.setExpdate("2310");
        mpiThreeDSAuthentication.setAmount("1.00");
        mpiThreeDSAuthentication.setThreeDSCompletionInd("Y"); //(Y|N|U) indicates whether 3ds method MpiCardLookup was successfully completed
        mpiThreeDSAuthentication.setRequestType("01"); //(01=payment|02=recur)
        mpiThreeDSAuthentication.setPurchaseDate("20200819035249"); //(YYYYMMDDHHMMSS)
        mpiThreeDSAuthentication.setNotificationURL("https://yournotificationurl.com"); //(Website where response from RRes or CRes after challenge will go)
        mpiThreeDSAuthentication.setChallengeWindowSize("03"); //(01 = 250 x 400, 02 = 390 x 400, 03 = 500 x 600, 04 = 600 x 400, 05 = Full screen)

        mpiThreeDSAuthentication.setBrowserUserAgent("Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/80.0.3987.132 Safari/537.36\\");
        mpiThreeDSAuthentication.setBrowserJavaEnabled("true"); //(true|false)
        mpiThreeDSAuthentication.setBrowserScreenHeight("1000"); //(pixel height of cardholder screen)
        mpiThreeDSAuthentication.setBrowserScreenWidth("1920"); //(pixel width of cardholder screen)
        mpiThreeDSAuthentication.setBrowserLanguage("en-GB"); //(defined by IETF BCP47)

        //Optional Methods
        mpiThreeDSAuthentication.setBillAddress1("3300 Bloor St W");
        mpiThreeDSAuthentication.setBillProvince("ON");
        mpiThreeDSAuthentication.setBillCity("Toronto");
        mpiThreeDSAuthentication.setBillPostalCode("M8X 2X2");
        mpiThreeDSAuthentication.setBillCountry("124");

        mpiThreeDSAuthentication.setShipAddress1("3300 Bloor St W");
        mpiThreeDSAuthentication.setShipProvince("ON");
        mpiThreeDSAuthentication.setShipCity("Toronto");
        mpiThreeDSAuthentication.setShipPostalCode("M8X 2X2");
        mpiThreeDSAuthentication.setShipCountry("124");

        mpiThreeDSAuthentication.setEmail("test@email.com");
        mpiThreeDSAuthentication.setRequestChallenge("Y"); //(Y|N Requesting challenge regardless of outcome)

		//************************OPTIONAL VARIABLES***************************

		HttpsPostRequest mpgReq = new HttpsPostRequest();
		mpgReq.setProcCountryCode(processing_country_code);
		mpgReq.setTestMode(true); //false or comment out this line for production transactions
		mpgReq.setStoreId(store_id);
		mpgReq.setApiToken(api_token);
		mpgReq.setTransaction(mpiThreeDSAuthentication);
		mpgReq.send();

		/**********************   REQUEST  ************************/

		try
		{
			Receipt receipt = mpgReq.getReceipt();

			System.out.println("ResponseCode = " + receipt.getResponseCode());
			System.out.println("ReceiptId = " + receipt.getReceiptId());
			System.out.println("Message = " + receipt.getMessage());

			System.out.println("MessageType = " + receipt.getMpiMessageType());
			System.out.println("TransStatus = " + receipt.getMpiTransStatus());
			System.out.println("ChallengeURL = " + receipt.getMpiChallengeURL());
			System.out.println("ChallengeData = " + receipt.getMpiChallengeData());
			System.out.println("ThreeDSServerTransId = " + receipt.getMpiThreeDSServerTransId());
		}
		catch (Exception e)
		{
			e.printStackTrace();
		}
	}
} // end TestResMpiTxn


MpiThreeDSAuthentication Request

MpiThreeDSAuthentication transaction object definition

MpiThreeDSAuthentication mpiThreeDSAuthentication = new MpiThreeDSAuthentication();

HttpsPostRequest object for MpiThreeDSAuthentication transaction

HttpsPostRequest mpgReq = new HttpsPostRequest();

mpgReq.setTransaction(mpiThreeDSAuthentication);

Core connection object fields (all API transactions)

Variable Name Type | Limits Description
Store Id String
N/A
Unique identifier provided by Moneris upon merchant account setup
API Token String
N/A
Unique alphanumeric string assigned by Moneris upon merchant account activation

Request fields for threeDSAuthentication request – Required

Element Type | Limit Description Set Method
Order Id String
50-character alphanumeric
Note: some special characters are not allowed < > $ % = ? ^ { } [ ] \
Merchant identified unique authentication identifier. Must be the same as on CardLookup if the cardlookup was performed previously; otherwise, a new orderId needs to be generated. mpiThreeDSAuthentication.
setOrderId("ORDERID_VALUE");
Cardholder Name String
45-character numeric
Cardholder name. mpiThreeDSAuthentication.
setCardholderName("CARDHOLDER_NAME_VALUE");
Pan String
20-character numeric
Most credit card numbers today are 16 digits, but some 13-digit numbers are still accepted by some issuers. This field has been intentionally expanded to 20 digits in consideration for future expansion and potential support of private label card ranges. mpiThreeDSAuthentication.
setPan("CC_VALUE");
Expiry Date String
4-character numeric
Card expiry date. YYMM. mpiThreeDSAuthentication.
setExpdate("EXP_VALUE");
Data Key String
25-character alphanumeric
The data key is the token that points to a previously stored profile. Profile identifier that all future financial Vault transactions (that is, they occur after the profile was registered by a ResAddCC or ResTokenizeCC transaction) will use to associate with the saved information. The data key is generated by Moneris, and is returned to the merchant (via the Receipt object) when the profile is first registered. mpiThreeDSAuthentication.
setDataKey("DATAKEY_VALUE");
Amount String
10-character decimal
Up to 7 digits (dollars) + decimal point (.) + 2 digits (cents) after the decimal point
EXAMPLE: 1234567.89
Amount being authenticated. *Amount must have the correct number of decimals for the currency supported. CAD and USD must have 2 decimal places mpiThreeDSAuthentication.
setAmount("AMOUNT_VALUE");
Purchase Date String
14-character alphanumeric
Date format
YYYYMMDDHHMMSS
mpiThreeDSAuthentication.
setPurchaseDate("YYYYMMDDHHMMSS");
3DS Completion Indicator String
1-character alphanumeric
Indicates whether 3ds method MpiCardLookup was successfully completed
Possible values:
Y = Successfully completed
N = Did not successfully complete
U = Unavailable
mpiThreeDSAuthentication.
setThreeDSCompletionInd(THREEDSCOMPLETION_VALUE);code>
Request Type String
2-character alphanumeric
01 = cardholder initiated payment mpiThreeDSAuthentication.
setRequestType("REQUEST_TYPE_VALUE");
Notification URL String
256-character alphanumeric
The URL where the cardholder will be redirected once the challenge is complete mpiThreeDSAuthentication.
setNotificationURL("HTTPS://YOURNOTIFICATIONURL.COM");
Challenge Window Size String
2-character alphanumeric
Relates to the rendering of the ACS challenge within the browser.
01 = 250 x 400
02 = 390 x 400
03 = 500 x 600
04 = 600 x 400
05 = Full screen
mpiThreeDSAuthentication.
setChallengeWindowSize("CWS_VALUE");
Browser User Agent String
2048-character alphanumeric
Browser User Agent mpiThreeDSAuthentication.
setBrowserUserAgent("BROWSER_USER_AGENT_VALUE”)
Browser Java Enabled String
1-character alphabetic
T = True | F = False mpiThreeDSAuthentication.
setBrowserJavaEnabled(BROWSER_JAVA_VALUE);
Browser Screen Height String
6-character alphanumeric
Pixel height of cardholder screen mpiThreeDSAuthentication.
setBrowserScreenHeight(BROWSER_SCREEN_HEIGHT_VALUE);
Browser Screen Width String
6-character alphanumeric
Pixel width of cardholder screen mpiThreeDSAuthentication.
setBrowserScreenWidth(BROWSER_SCREEN_WIDTH_VALUE);
Browser Language String
8-character alphanumeric
As defined IETF BCP47 mpiThreeDSAuthentication.
setBrowserLanguage(BROWSER_LANGUAGE_VALUE);

Note: Either a pan or a data_key must be passed in the request

Request fields for threeDSAuthentication request – Optional

Element Type | Limit Description Set Method
Currency String
3-character numeric
ISO 4217 3 digit currency code (CAD = 124, USD = 840). This field should not be sent unless Multi Currency is enabled on your merchant account. mpiThreeDSAuthentication.
setCurrency("CURRENCY _VALUE");
Billing Address String
50-character numeric
Billling address mpiThreeDSAuthentication.
setBillAddress1("BILL_STREET_ADDRESS_VALUE");
Billing Province String
3-character alphnumeric
Billing province – defined in country subdivision ISO 3166-2 mpiThreeDSAuthentication.
setBillProvince("BILL_PROV_VALUE");
Billing City String
50-character alphanumeric
Billing city mpiThreeDSAuthentication.
setBillCity("BILL_CITY_VALUE");
Billing Postal Code String
16-character alphanumeric
Billing postal code mpiThreeDSAuthentication.
setBillPostalCode("BILL_POSTAL_CODE_VALUE");
Billing Country String
3-character alphanumeric
Billing country – defined as 3 digit country code ISO 3166-1 mpiThreeDSAuthentication.
setBillCountry("BILL_COUNTRY_VALUE");
Shipping Address String
50-character numeric
Shipping address mpiThreeDSAuthentication.
setShipAddress1("SHIP_STREET_ADDRESS_VALUE ");
Shipping Province String
3-character alphnumeric
Shipping province – defined in country subdivision ISO 3166-2 mpiThreeDSAuthentication.
setShipProvince("SHIP_PROV_VALUE ");
Shipping City String
50-character alphanumeric
Shipping city mpiThreeDSAuthentication.
setShipCity("SHIIP_CITY_VALUE ");
Shipping Postal Code String
16-character alphanumeric
Shipping postal code mpiThreeDSAuthentication.
setShipPostalCode("SHIP_POSTAL_CODE_VALUE ");
Shipping Country String
3-character alphanumeric
Shipping country – defined as 3 digit country code ISO 3166-1 mpiThreeDSAuthentication.
setShipCountry("SHIP_COUNTRY_VALUE ");
Email String
254-character alphanumeric
Cardholder email mpiThreeDSAuthentication.
setEmail("EMAIL_VALUE");
Request Challenge String
1-character alphanumeric
Indicates whether a challenge is requested for this transaction.
Possible Values
Y = Yes
N = No
mpiThreeDSAuthentication.
setRequestChallenge("CHALLENGE_VALUE");

MpiThreeDSAuthentication Receipt Request

The result of the threeDSAuthentication request can be pulled from the TransStatus field. The results are defined in the TransStatus table in the Appendix.

A “Y” or an “A” transStatus means you can proceed immediately to the financial with the cavv value provided. This is a frictionless transaction flow.

A value of “C” indicates that the cardholder must be presented a challenge. In order to present the challenge you must POST a with a “creq” field, which contains the ChallengeData, to the URL defined the the challengeURL response.

All other TransStatus values are up to the merchant discretion as to how to proceed with the transaction.

Receipt object definition

Receipt receipt = mpgReq.getReceipt();

Element Description Get Method
Receipt Id Echo of the orderID from the request receipt.getReceiptId()
Message Response message. receipt.getMessage()
Message Type Denotes the request message
EMV nomenclature “ARES”
receipt.getMessage()
Transaction Status Indicates whether the ACS result. For more information about this field, see 3-D Secure 2.0 TransStatus Codes section receipt.getMpiTransStatus()
Challenge URL If the transStatus is “C” this field will be populated with the URL to POST the challengeData to create the cardholder challenge screen receipt.getMpiChallengeURL()
Challenge Data If the transStatus is “C” this field will be populated with the data to post the challengeURL. The data must be posted in a field with the name “creq” receipt.getMpiChallengeData()
ThreeDSServerTransId 3DS unique transaction identifier receipt.getMpiThreeDSServerTransId()

Handling the Challenge Flow

If you get a TransStatus = “C” in your threeDSAuthentication Response, then a form must be built and POSTed to the URL provided.

The form can be dynamically generated and added to the DOM and submitted or created and submitted in a manner that suits your environment. This can be built as a full page redirect or presented as an inline iframe or as a lightbox.

If you wish for this to be loaded inside a defined space it must conform to the size specified in the challengeWindowSize from the request. The “action” is retrieved from the ChallengeURL and the “creq” field is retrieved from the ChallengeData.

Below is a sample of a basic static form to help visualize the data and fields that need to be submitted.

<form method="POST" action="https://3dsurl.example.com/do3DS">
   <input name="creq" value="thisissamplechallengedata1234567890">
</form>

Cavv Lookup Request (Challenge flow only)

In the challenge flow, the 3DS server will POST a “cres” value back to the notificationURL provided in the threeDSAuthentication request once the cardholder has completed the challenge. The “cres” is then posted to the Moneris 3DS server in the CavvLookup request, the response to this request will include the result of the challenge, which will include the eci and the cavv if the challenge was successful.

Canada Code Sample

package Canada;

import JavaAPI.*;

public class TestCanadaMpiCavvLookup
{
	public static void main(String[] args)
	{
		String store_id = "moneris";
		String api_token = "hurgle";
		String processing_country_code = "CA";

		//BASE64 Encoded CRes value returned from response at completion of challenge flow.
        String cres = "eyJhY3NUcmFuc0lEIjoiNzQ0ZDI2NjUtNjU2Yy00ZGNiLTg3MWUtYTBkYmMwODA0OTYzIiwibWVzc2FnZVR5cGUiOiJDUmVzIiwiY2hhbGxlbmdlQ29tcGxldGlvbkluZCI6IlkiLCJtZXNzYWdlVmVyc2lvbiI6IjIuMS4wIiwidHJhbnNTdGF0dXMiOiJZIiwidGhyZWVEU1NlcnZlclRyYW5zSUQiOiJlMTFkNDk4NS04ZDI1LTQwZWQtOTlkNi1jMzgwM2ZlNWU2OGYifQ==";

		MpiCavvLookup mpiCavvLookup = new MpiCavvLookup();
		mpiCavvLookup.setCRes(cres);

		//************************OPTIONAL VARIABLES***************************

		HttpsPostRequest mpgReq = new HttpsPostRequest();
		mpgReq.setProcCountryCode(processing_country_code);
		mpgReq.setTestMode(true); //false or comment out this line for production transactions
		mpgReq.setStoreId(store_id);
		mpgReq.setApiToken(api_token);
		mpgReq.setTransaction(mpiCavvLookup);
		mpgReq.send();

		/**********************   REQUEST  ************************/

		try
		{
			Receipt receipt = mpgReq.getReceipt();

			System.out.println("ResponseCode = " + receipt.getResponseCode());
			System.out.println("ReceiptId = " + receipt.getReceiptId());
			System.out.println("Message = " + receipt.getMessage());

			System.out.println("ThreeDSServerTransId = " + receipt.getMpiThreeDSServerTransId());
			System.out.println("TransStatus = " + receipt.getMpiTransStatus());
			System.out.println("ChallengeCompletionIndicator = " + receipt.getMpiChallengeCompletionIndicator());
			System.out.println("Cavv = " + receipt.getMpiCavv());
			System.out.println("ECI = " + receipt.getMpiEci());
		}
		catch (Exception e)
		{
			e.printStackTrace();
		}
	}
} // end TestResMpiTxn


Cavv Lookup Request transaction object definition

MpiCavvLookup mpiCavvLookup = new MpiCavvLookup();

HttpsPostRequest object for MpiCavvLookup transaction

HttpsPostRequest mpgReq = new HttpsPostRequest();

mpgReq.setTransaction(mpiCavvLookup);

Core connection object fields (all API transactions)
Variable Name Type | Limits Description
Store Id String
N/A
Unique identifier provided by Moneris upon merchant account setup
API Token String
N/A
Unique alphanumeric string assigned by Moneris upon merchant account activation
Request fields for Cavv Lookup request – Required
Element Type | Limit Description Set Method
Cres String
200-character alphanumeric
Response data from the challenge mpiCavvLookup.
setCRes(cres);

Cavv Lookup Receipt Request

Receipt object definition

Receipt receipt = mpgReq.getReceipt();

Element Description Get Method
Receipt Id Echo of the orderID from the request receipt.getReceiptId()
Message Response message. receipt.getMessage()
Transaction Status Indicates whether the ACS result. For more information about this field, see 3-D Secure 2.0 TransStatus Codes section receipt.getMpiTransStatus()
Challenge Completion Indicator “Y” challenge complete. “N” challenge not complete receipt.getMpiChallengeCompletionIndicator()
ECI Crypt Type to be provided in the financial request receipt.getMpiEci()
CAVV Cardholder Authentication Value to be provided in the finacial request. receipt.getMpiCavv()
ThreeDSServerTransId 3DS unique transaction identifier receipt.getMpiThreeDSServerTransId()

Performing the authorization

Once the authentication is complete and a cavv and eci value are retrieved these values can be sent to Moneris using the transactional cavv_purchase or cavv_preauth as defined in the Moneris Gateway transaction API.

Important note: Please include the CAVV, 3DS Version and 3DS Server Transaction ID in all 3DS authorization requests to ensure that you retain chargeback liability rights for the transaction.

Testing your 3D Secure 2.0 integration

In the testing stage of development:

  1. Use the testing URL as Host for your requests: esqa.moneris.com
  2. In all CardLookUp requests, make sure that you are using the testing version of your credentials for store ID and API token
  3. In all threeDSAuthentication requests, make sure that you are using the testing version of your credentials for store ID and API token
  4. In all CavvLookup requests, make sure that you are using the testing version of your credentials for store ID and API token

Note: 3DS test cases and card numbers can be found here

Moving to production with 3D Secure 2.0

Once you have finished testing your 3D Secure 2.0 integration, do the following to move the integration into production:

  1. Use the production URL as Host for your requests: www3.moneris.com
  2. In all CardLookUp requests, make sure that you are using the production version of your credentials for store ID and API token
  3. In all threeDSAuthentication requests, make sure that you are using the production version of your credentials for store ID and API token
  4. In all CavvLookup requests, make sure that you are using the production version of your credentials for store ID and API token

3-D Secure 2.0 TransStatus Codes

Value Description Comments
Y Authenticated Cardholder has been fully authenticated
A Authentication Attempt A proof of authentication attempt was generated
C Challenge Required Cardholder requires a challenge to complete authentication
U Not Authenticated Authentication could not be performed due to technical or other issue
N Not Authenticated Not Authenticated
R Not Authenticated Not authenticated because the Issuer is rejecting authentication and requesting that authorisation not be attempted
